Product Automotive grade thick film chip resistors
Category Resistors（电阻） Model 0402 0603 0805 1206 1210 2010 2512 Purchase Introduction Features:1. Meet (AEC-Q200)2. Compatible with all welding processesProduct parameters:Volume specification: 0402 0603 0805 1206 1210 2010 2512Resistance range: 1Ω ～ 10MΩTemperature coefficient: ± 25ppm / ℃ ± 50ppm / ℃Working temperature: -55 ℃ ～ + 155 ℃Product accuracy: ± 1% ± 5% Rated power: 1 / 16
Product Anti-break chip capacitor
Category Capacitors（电容） Model 0603 0805 1206 Purchase Introduction Features:1. Using high-strength ceramics to replace the original MLCC protective layer, greatly improving the strength of the capacitor body;2. Without changing the internal design of the original capacitor, the performance of the capacitor will not be affected;3. The increase in product manufacturi
Product Medium and high voltage chip capacitors
Category Capacitors（电容） Model 0603 0805 1206 1210 Purchase Introduction Features:1. The flexible end (SUPERTERM) prevents mechanical cracks;2. Special flash electrode design to provide high rated voltage;3. ± 50ppm / ℃ ± 100ppm / ℃4. SMD design can be applied to wave soldering and reflow soldering;5. High reliability and RoHS compliance;Product parameters:Volume specifi
Product Conventional capacitor
Category Capacitors（电容） Model 0402 0603 0805 1206 1210 Purchase Introduction Features:1. C0G (NP0): The most commonly used temperature-compensated capacitor belongs to Class I dielectric material, its performance is stable, the temperature coefficient is within 0 ± 30ppm / ℃, and it has good high-frequency characteristics;2. X7R: A temperature-stabilized capacitor widely use

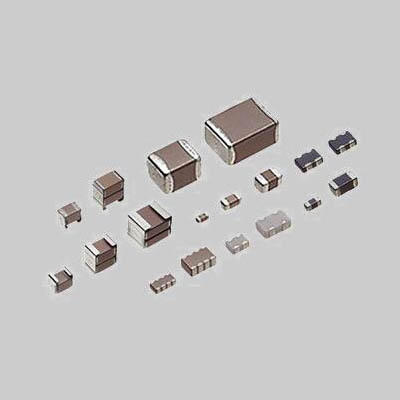

Product Multilayer ceramic chip capacitors
Category Capacitors（电容） Model 0603 0805 1206 Purchase Introduction Features:1. High dimensional accuracy2. The terminal electrode is a three-layer electrode, suitable for splash peak soldering and reflow soldering.3. The dielectric and the exterior are made of the same material, and the environmental conditions have little influence4. Contains various temperature c
Product Thin film chip resistor
Category Resistors（电阻） Model 0402 0603 0805 1206 Purchase Introduction Features:1. Advanced thin film technology2. Resistance range (1Ω ~ 2.49MΩ)Product parameters:Volume specification: 0402 0603 0805 1206Resistance range: 1Ω ～ 2.49MΩTemperature coefficient: ± 25ppm / ℃ ± 50ppm / ℃Working temperature: -55 ℃ ～ + 155 ℃Product accuracy: ± 0.5% ± 0.1% Rated power: 1 / 16W
Product High precision thin film chip resistor
Category Resistors（电阻） Model 0201 0402 0603 0805 1206 1210 2010 2512 Purchase Introduction Features:1. Advanced thin film technology2. Very high tolerance accuracy (± 0.01%)3. Very low temperature coefficient (± 5PPM)4. Wide resistance range (1Ω ~ 3MΩ)5. Small volume (0201)Product parameters:Volume specification: 0201 0402 0603 0805 1206 1210 2010 2512Resistance range: 1Ω ～ 3MΩTemperature
Product High voltage chip resistor
Category Resistors（电阻） Model 0402 0603 0805 1206 1210 2010 2512 Purchase Introduction Features:1. High reliability2. Good t high pressure resistance performance3, 0603 ~ 2512 standard packagingProduct parameters:Volume specification: 0402 0603 0805 1206 1210 2010 2512Resistance range: 39KΩ ～ 200MΩTemperature coefficient: ± 100ppm / ℃ ± 200ppm / ℃ ± 400ppm / ℃Working temperature: -55
Product High resistance chip resistor
Category Resistors（电阻） Model 0805 1206 Purchase Introduction Features:1. Wide resistance range2. SMD package3. High reliability4. High reliability multilayer electrode structureProduct parameters:Volume specification: 0805 1206Resistance range: 110MΩ ～ 1GΩTemperature coefficient: ± 500ppm / ℃ ± 1000ppm / ℃Working temperature: -55 ℃ ～ + 125 ℃Product accuracy:

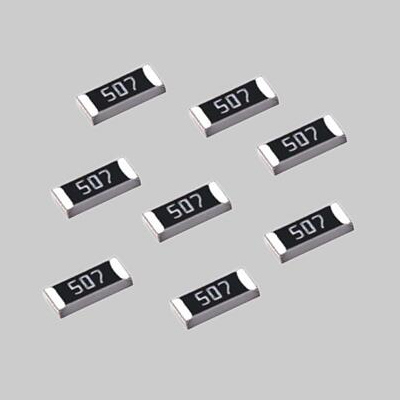

Product Common thick film chip resistor
Category Resistors（电阻） Model 01005 0201 0402 0603 0805 1206 1210 1812 2010 2512 Purchase Introduction Features:1. Short and thin2. High reliability3. Multi-layer electrode structure4. Suitable for all welding processesProduct parameters:Volume specification: 01005 0201 0402 0603 0805 1206 1210 1812 2010 2512Resistance range: 0Ω, 1Ω ～ 100MΩTemperature coefficient: ± 100ppm / ℃ ± 200ppm / ℃ ± 300ppm
